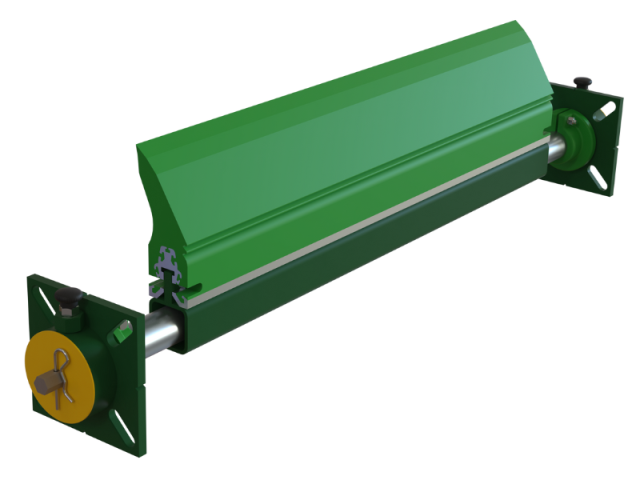

The Micro Eraser™ Primary Belt Cleaning System is compact polyurethane bladed cleaner ideal for installations with tight clearance issues. Easy tensioning with either pin style tensioner or upgraded SafeTorque ratchet tensioner. Rigid square section mainframe minimises deflection to ensure even tip pressure along the length of the blade.” is designed to be lightweight yet provide strength and durability with a 6 mm thick, 51 mm x 51 mm tube stock steel mainframe and corrosion-resistant, galvanized Schedule 80 pipe stub ends.
Key features & benefits:
- Proven effective cleaning performance with a 152 mm tall Raptor blade.
- Very compact mounting footprint only protrudes 114mm from mounting structure.
- Compact size is ideal for limited space applications.
- No rusted springs, hoses, cables, shocks or mud packed components to deal with.
- The Perma-Torque™ internal central tensioner is adjustable from 7 to 27 Nm resulting in uniform cleaning pressure to the conveyor belt.
- Single pin blade attachment means quick and simple blade change out with less downtime and no rusty bolts.
- Upgraded compact tensioning system based on the Safe-Torque™ tensioner.
SPECIFICATIONS
Suits:
- Belt speeds up to 2.5m/s for G83 blades, for greater speeds contact Kinder.
- Maximum Pulley Diameter (PD) 508mm
- Mounting distances:
– 102 mm PD OF 203mm – 254 mm
– 95 mm PD OF 255mm – 330mm
– 89 mm PD OF 331mm – 406mm
– 83 mm PD OF 407mm – 508mm - Suitable for portable equipment.
The Micro Eraser™ Primary Belt Cleaning System are available in a vast array of different sizes to suit all belt widths. Please contact Kinder Australia for dimensions on the extensive range of other sizes suitable for your specific belt width.
