Case Study: K-Sure® Belt Support System

Download PDF version

Previous Problem

Our customer was experiencing significant product spillage issues causing the trough rollers at the transfer point to seize and wear out prematurely, pictured here below.

This is a common problem experienced at transfer points where the force of the conveyor feed through a drop chute from another conveyor, causes belt edge sag in between belt supporting rollers.  Not only is there spillage, but the skirting arrangement present wears prematurely and a dust hazard is created.

This problem creates:

  • Material Spillage
  • Premature Wear of Conveyor Componentry (K-Ultra Dual® Seal was being changed out every months)
  • Health and Safety Hazards
  • Unscheduled Labour Clean-Up Costs

Resolution

The problem was effectively resolved by replacing the existing impact wing rollers under the transfer chute with our, K-Sure® Belt Support System.  This belt support configuration utilises a series of low friction polymer slider bars.   K-Sure® Belt Support’s universal adaptor brackets are then arranged to the existing frame and assembled precisely to suit the conveyor’s troughed belt profile.

The System requires no pre-engineering, adjustments or special tools and the outcome has successfully removed the occurrence of belt sag.  Now there is no spillage to clean-up, and the already present K-Ultra Dual® Seal can effectively contain the blow-out pressure of the dust particles.

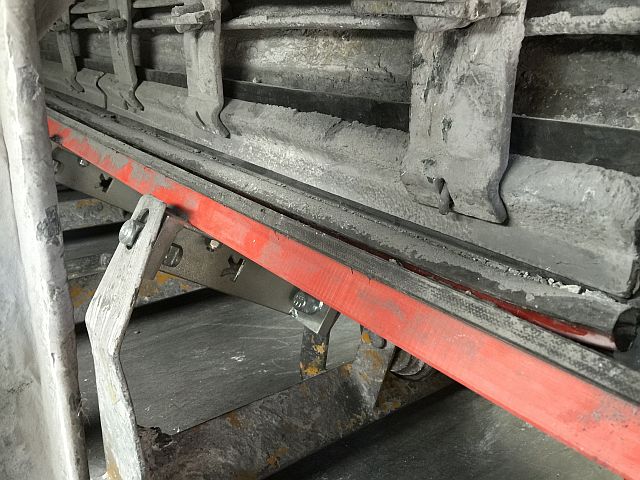

Pictured here is the spillage-free transfer point area, the Kinder “K” universal bracket’s, K-Sure® Belt Support’s red polymer slider bars.  K-Ultra Dual® Seal was pre-existing, but now functions as it was intended and controls dust particles from becoming airborne.
