Heavy-Duty Applications

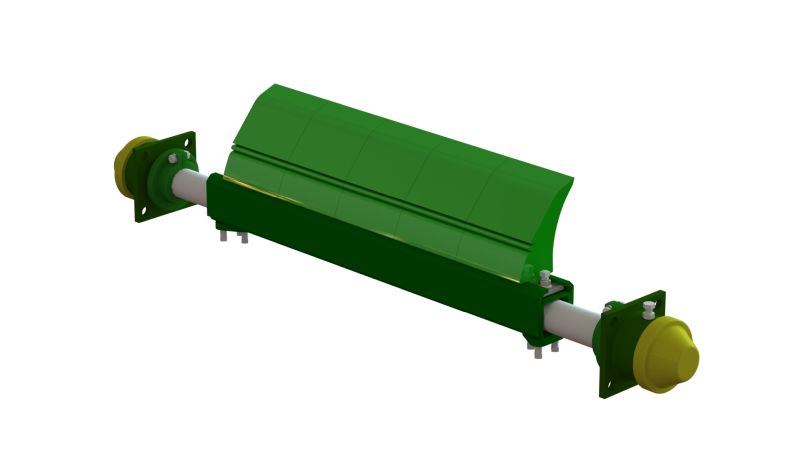

Eraser HD™ Primary Belt Cleaner is designed to withstand heavy vibration. This system has a reinforced mainframe and a heavy-duty channel attachment design. It utilises a series of 152mm x 178mm blade segment that conforms to crowned head pulleys. Designed for superior strength and durability with a 6mm thick, 76mm x 76mm tube stock steel mainframe and corrosion-resistant, galvanised Schedule 80 pipe stub ends.
Key Benefits:
- Designed for use on conveyors with crowned head pulleys or heavy vibration.
- Heavy duty 178mm tall polyurethane blades provide effective cleaning performance.
- Segmented blade lengths available in 152mm, 305mm and 457mm which can be used in any combination for more effective cleaning.
- The Perma-Torque™ internal central tensioner is adjustable from 27 to 108 Nm resulting in uniform cleaning pressure to the conveyor belt.
- Compact mounting footprint only protrudes 127mm from mounting structure.
- No rusted springs, hoses, cables, shocks or mud- packed components to deal with.
- Brightly coloured safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination.
