Product: Emergency Pull-Wire Switch Extreme – ZS 80 KST

New

SWITCH CONTROL UNDER EXTREME CONDITIONS

The new robust switchgear series ZS 80 KST has been especially developed for extreme conditions, suitable for application in open-cast mining, gravel plants, quarries and sand pits, recycling plants, waste industry, power stations, heavy industrial plant manufacture and food processing industry.

These emergency pull-wire switches guarantee, amongst other things, a reliable emergency-stop function and wire-break monitoring on larger machines.

New mechanics facilitate a wire length of up to 75m while maintaining a maximum pull force of 70N required to actuate the emergency stop function. This makes the safety switch easier to operate and reliably meets all the relevant Australian and International Standards.

Note: As per AS NZ 4024.3610-2015 Safety Standards, 75m pull-wire length only applicable when installed on conveyors more than 2.7m above a floor, walkway and platform.

For conveyors installed less than 2.7m above a floor, walkway or platform, a 30m maximum interval per switch is required.

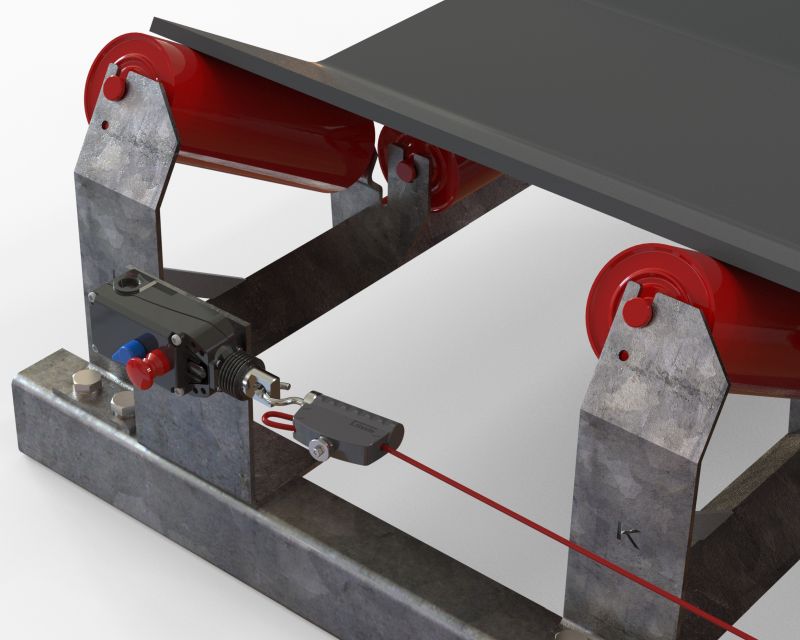

On the ZS 80 KST emergency pull-wire switches the emergency-stop command can be initiated from any point along the pull-wire. They have a positive linkage between the NC contacts and the pull-wire.

ZS 80 KST emergency pull-wire switches require pre-tensioning before operation.  All devices are equipped with wire-breakage detection.

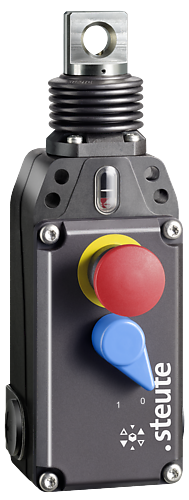

Emergency Pull-Wire Switch Extreme ZS 80 KST NIRO

Key Features:

  • Pull-wire unit and screws made of stainless steel (NIRO)
  • High degree of protection IP 67
  • Suitable for the food industry
  • Thermoplastic enclosure
  • 4 contacts
  • Position indicator and integrated emergency-stop push button
  • Wire length up to 75m, however relevant AS NZ 4024.3610-2015 Safety Standards must be followed.
  • Spring force variant: 100N
  • Lever for release and position indication
  • Watertight collar
  • Wire pull and breakage detection

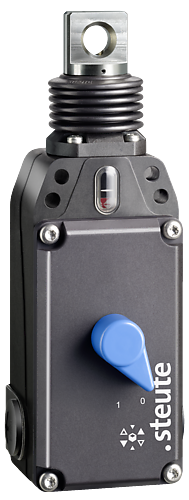

Emergency Pull-Wire Switch Extreme ZS 80 KST W/O PB NIRO

Key Features:

  • Pull-wire unit and screws made of stainless steel (NIRO)
  • High degree of protection IP 67
  • Thermoplastic enclosure
  • 4 contacts
  • Position indicator
  • Wire length up to 75m, however relevant AS NZ 4024.3610-2015 Safety Standards must be followed.
  • Spring force variant: 100N
  • Lever for release and position indication
  • Watertight collar
  • Wire pull and breakage detection
